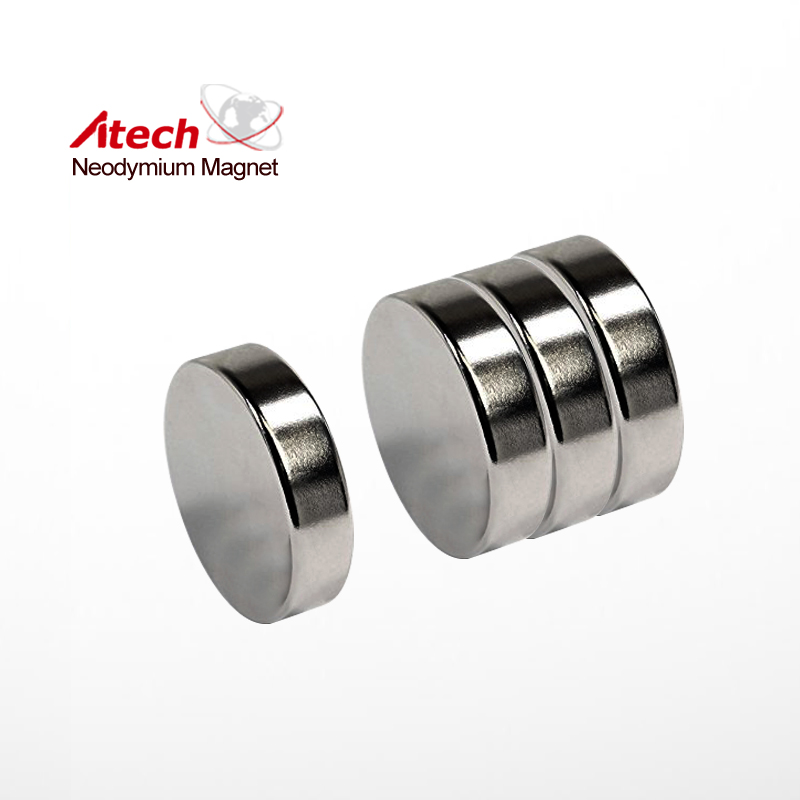

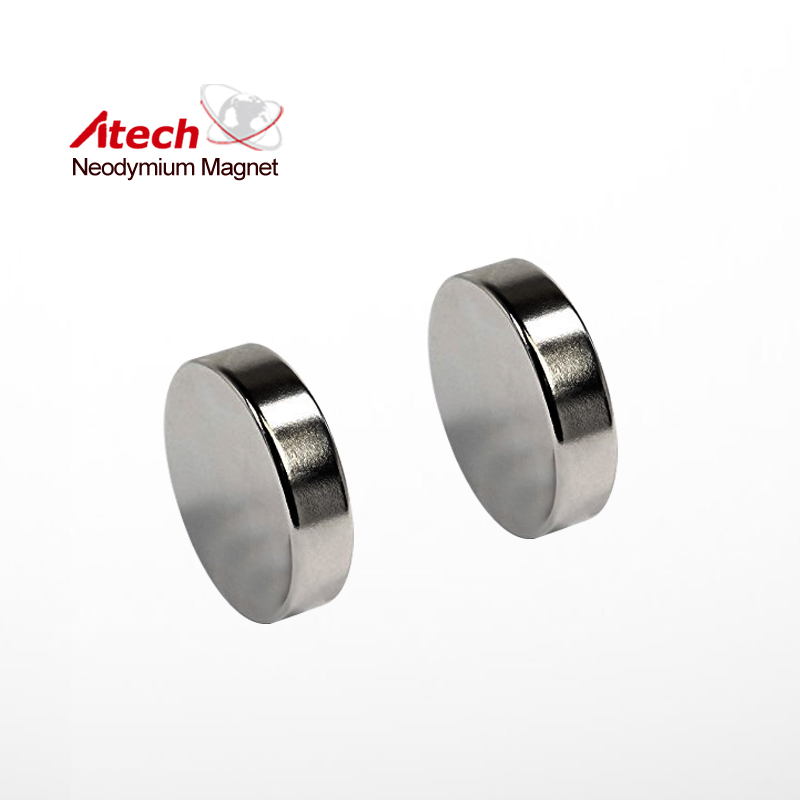

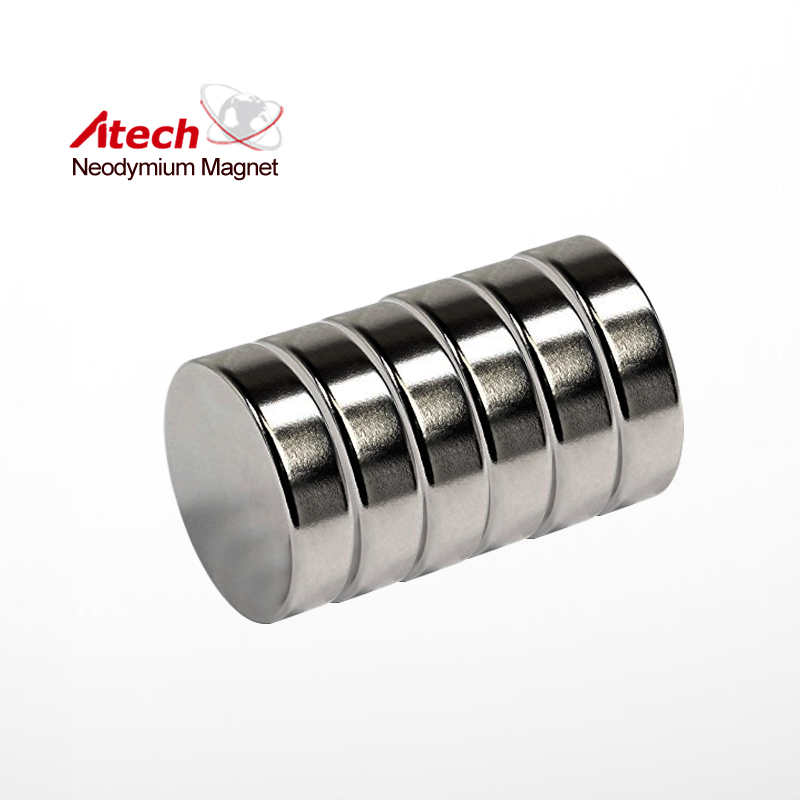

Nickel Coated N35H Neodymium Magnet Disc

Nickel Coated N35H Neodymium Magnet Disc

    Nickel Coated N35H Neodymium Magnet Disc

    Nickel Coated N35H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N35H Neodymium Magnet Disc is up to 120 degrees C.

    Product Description
    Material NdFeB
    Grade N35H
    Remanence Br(kGs) Max:12.2
    Min:11.7
    Plating Ni-Cu-Ni (Nickel)
    Shape Disc
    Coercive force(kOe) Min. 10.9
    Intrinsic Coercive force (kOe) Min. 17
    Max energy product (MGOe) Max:36
    Min:33
    Max Temp  (℃) 120
