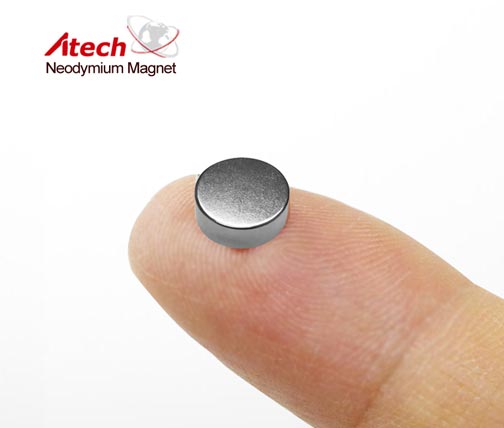

Powerful Disc Magnet N42 5/16”

This powerful neodymium disc magnet measures 5/16" in diameter, 1/16" in thickness, with the pull force of 1.66lb vertically. It is made from an alloy of neodymium, iron, and boron, plated with triple layers of nickel-copper-nickel for effective corrosion protection.

The applications of this neodymium disc magnet include consumer electronics, home appliances, industrial equipment & automation, information technology products, medical devices and so on.

Leave Message

Consult Now

Product Description

Why Choose Us
1. ISO9001: 2015 Quality Management System certified by TUV with continuous improvements.
2. 25 years experience in neodymium magnet R & D and Manufacturing with over 1000 customized designs.
3. R & D team with multiple patents led by national “scientific and technological progress” award winner.
4. Ultimate magnetic solution provided with easy communication and fast response.

Please Note:
1. All neodymium magnets are very strong and brittle.
2. Must be handled with extreme care to avoid personal injury.
3. Eye protection should be worn when handling magnets.
4. Keep the magnets away from pacemakers.
5. The neodymium magnet should NOT be for children.

SKU Code: ATECHDI002
Dimensions: 5/16″ x1/16 Thick
Tolerances: ±0.05mm
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Axial
Weight: 0.480 g
Br Max/Gauss rating: 13200 GS
Max Operating Temp: 80ºC (176ºF )
