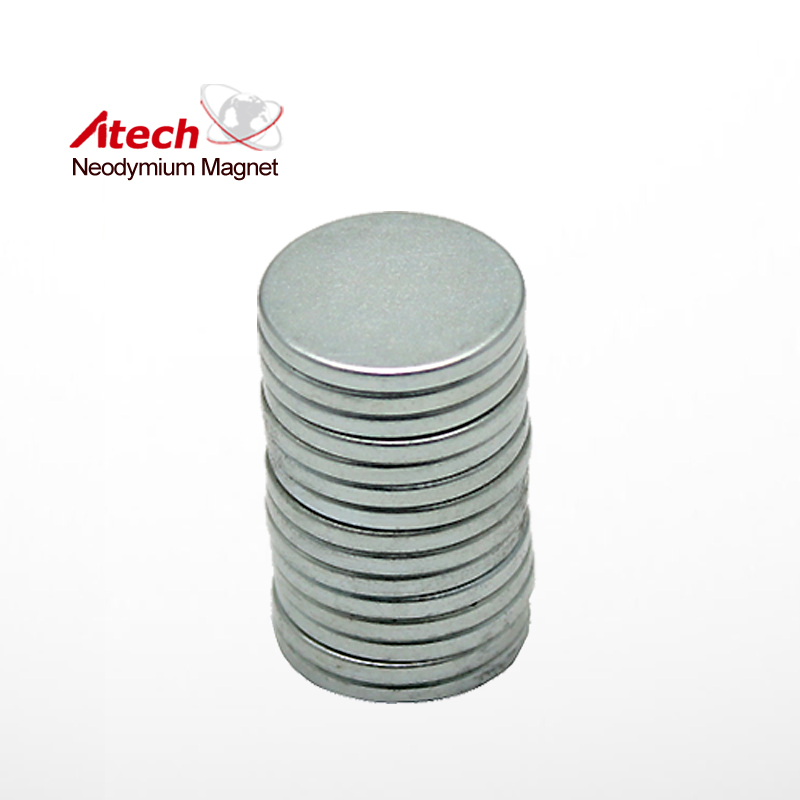

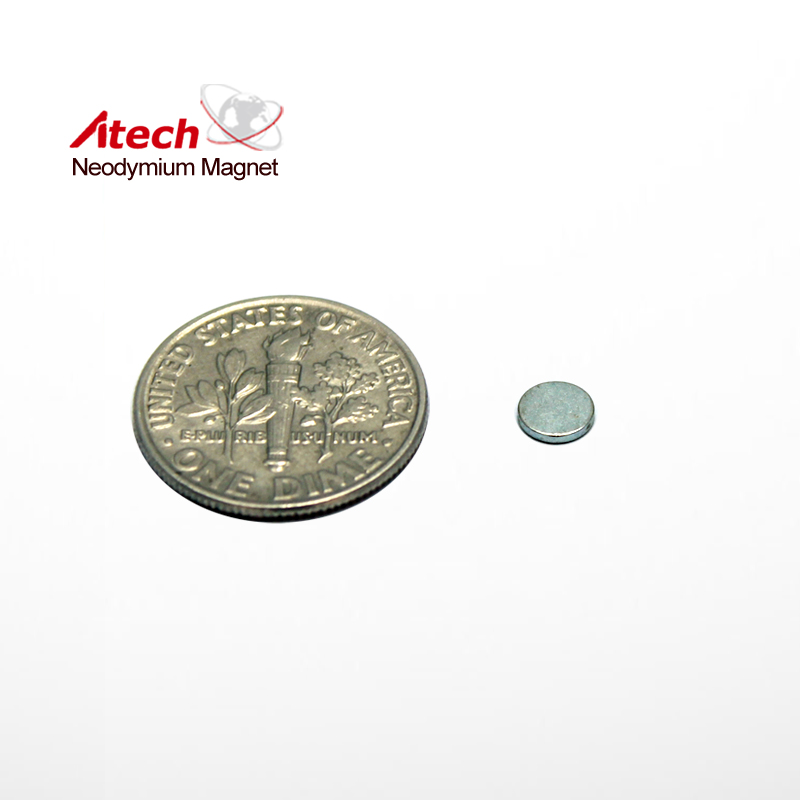

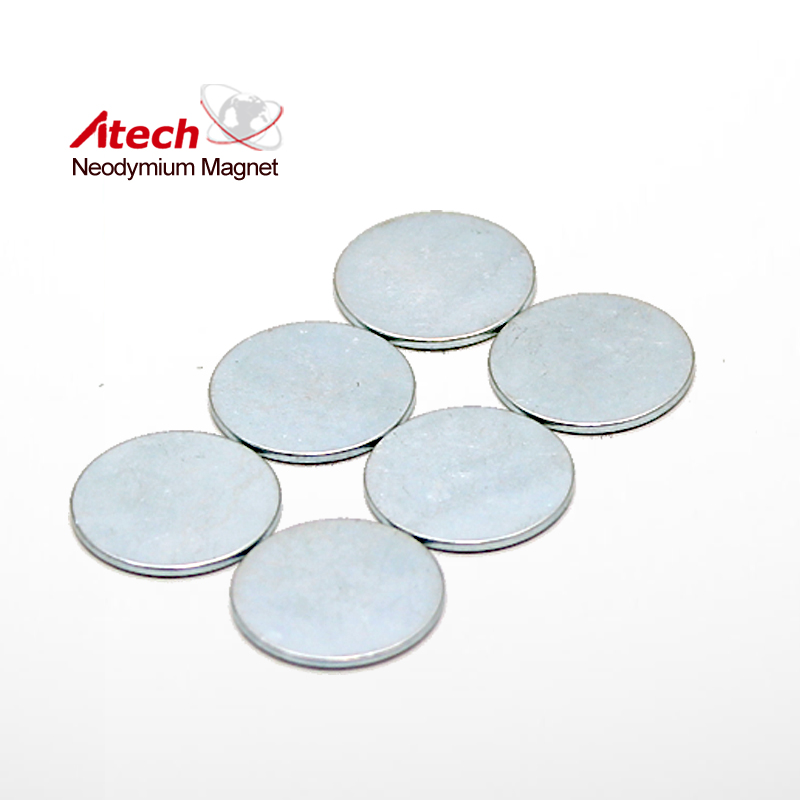

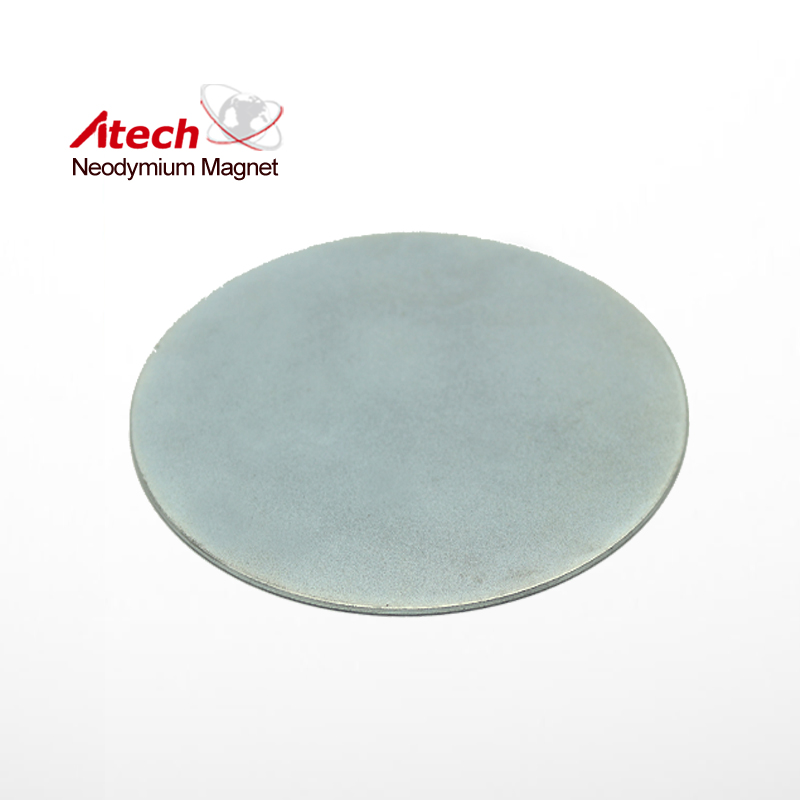

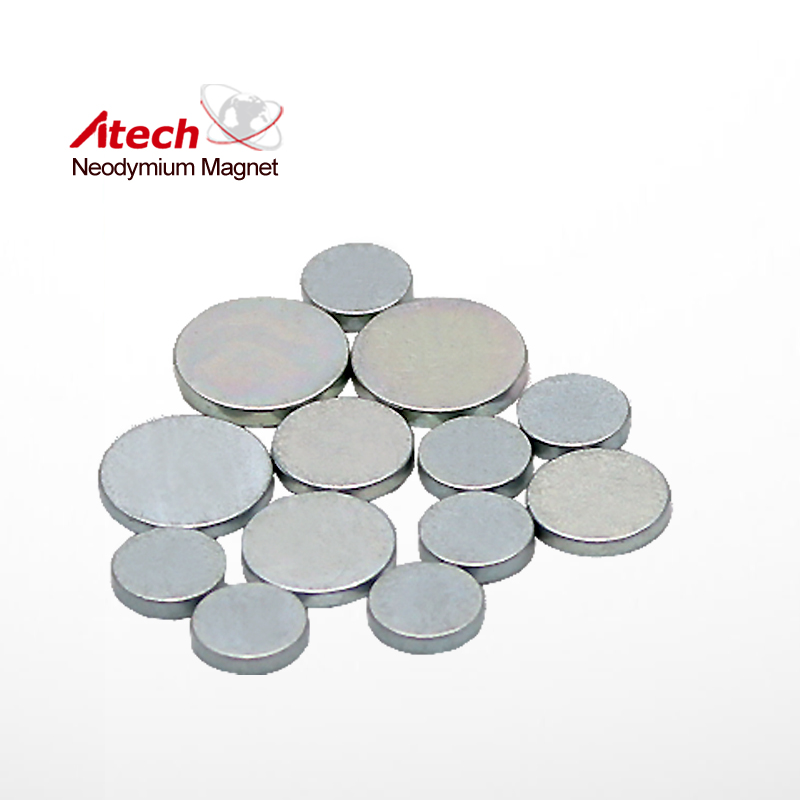

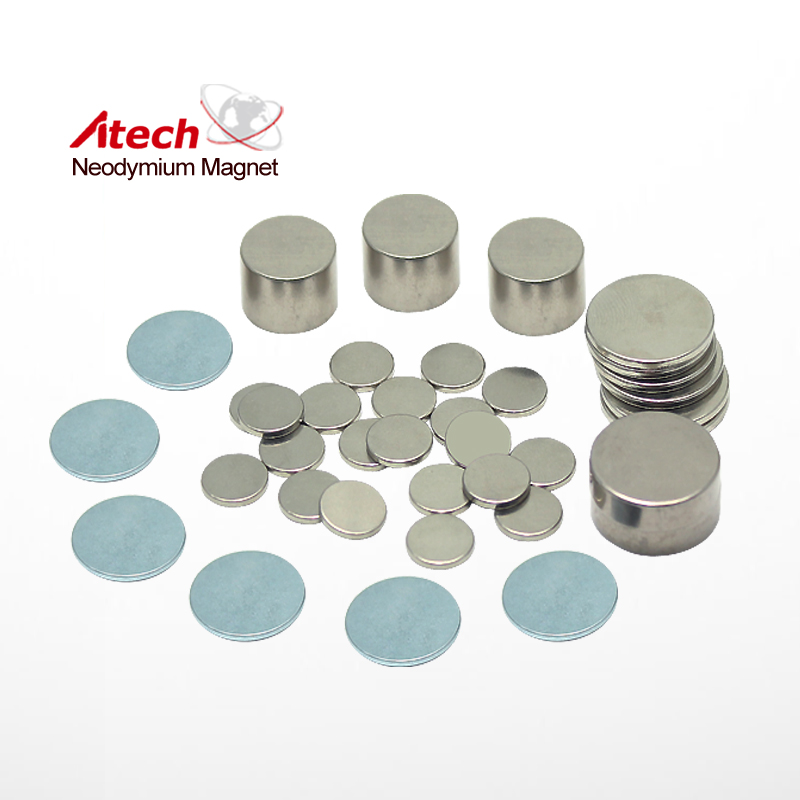

Zinc Coated N45H Neodymium Magnet Disc

Zinc Coated N45H Neodymium Magnet Disc

    Zinc Coated N45H Neodymium Magnet Disc

    Zinc Coated N45H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Zinc + Copper + Zinc (Zn-Cu-Zn). The maximum operating temperature of Zinc Coated N45H Neodymium Magnet Disc is up to 120 degrees C.

    Product Description
    Material NdFeB
    Grade N45H
    Remanence Br(kGs) Max:13.7
    Min:13.2
    Plating Zn-Cu-Zn (Zinc)
    Shape Disc
    Coercive force(kOe) Min. 12.1
    Intrinsic Coercive force (kOe) Min. 17
    Max energy product (MGOe) Max:46
    Min:43
    Max Temp  (℃) 120
